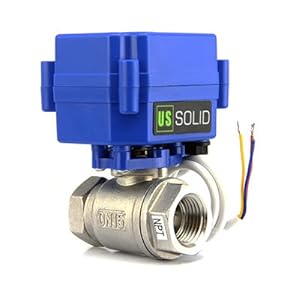

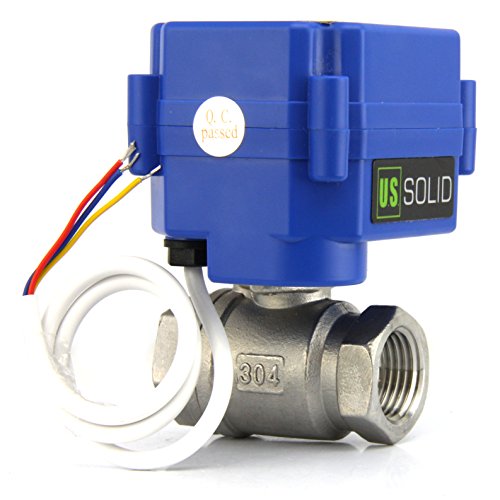

Motorized Ball Valve- 1/2″ Stainless Steel Electrical Ball Valve with Full Port, 9-24V AC/DC and 3 Wire Setup by U.S. Solid

This ½” stainless steel motorized ball valve is affordable enough for the home hobbyist, while durable enough for titans of industry. The valve body and stem are made of SS304 steel, which is lead free and safe for drinking water. It actuates using 9V to 24V of AC or DC power, and will fully open or fully close in 3-5 seconds. Once in position, it automatically stops using energy. This is important as it will never overheat. This is a key difference between motorized ball valves and solenoid valves. Most solenoid valves are constantly energized, while these electrical ball valves are not, making them a safer and more eco-friendly option.
The attention to detail in this valve extends beyond the metal. The casing is rated as IP65. This ingress protection rating is used to define how well the casing does at sealing. For U.S. Solid motorized ball valves, they have the highest IP rating possible against solids (6), representing a seal that protects against all solids, even dust. For water, the rating (5) represents seal protection against water spray from all directions. This means the casing and body are all built to last.
Motorized ball valves have a variety of interesting and convenient uses. Many choose to use them in-home water systems. They are also a great tool for use in home automation projects. Home brewery systems typically need several of these valves, and the SS304 is great for fermented liquids. Lastly, all of the U.S. Solid motorized ball valves work well with Arduino automation systems.
Specifications
Valve Material: SS304
Ball Seat: PTFE
Seal: EPDM
Close/Open Time: 3-5 Seconds
Working Voltage: 9-24V AC/DC
Max Power: 2W
Max Torque: 2 N m
Max Pressure: 1.0Mpa
Temperature range for Flow Medium: 0°C to 90°C
Ambient Temperature Range: -10°C to 40°C
Enclosure Rating: IP65
Life Expectancy: 80,000-100,000 Cycles
Bore Type: Full
Thread Type: NPT

Make sure this fits by entering your model number.
SAFE AND RELIABLE- The valve body is made of SS304 steel, with NSF certification, this ball valve is safe for drinking water; Lifespan is 80,000-100,000 cycles.
NPT THREADING- ½” Stainless steel threading, manufactured and measured according to National Pipe Thread standards; This electrical ball valve is full port, meaning the bore in the ball is a full ½”; This minimizes pressure loss through the valve; Perfect for home automation projects
9V-24V AC/DC- Works effectively over entire voltage range; Will open or close valve in 3-5 seconds; No power expended once fully open or fully closed
3 WIRE, 2 POINT CONTROL SETUP- Simple three wire connection, with two points of control; No energy expended once in position
ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time
